Basic |
|
|
Series |
Powerlogic |
|
Product Name |

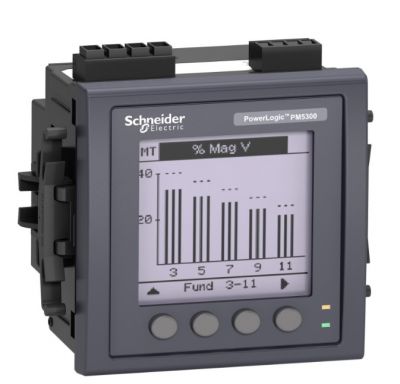

Powerlogic Pm5000 |
|
Product Group |
Pm5340 |
|
Product or Component Type |
Power meter |
|
Characteristic |
|
|
Relative Humidity |
5-95 % -De 50-50 °C |
|
Rated Environment Temperature for Operating |
-25-70 °C |
|
Operational Altitude |
2000 M |
|
Environmental Characteristic for Storage |
-40-85 °C |
|
Electromagnetic Compatibility |
Electrostatic Decharge Level 4 'E Conforming to IEC 61000-4-2 |
|
Magnetic Area in the Power Frequency Level 4 'E Conforming to IEC 61000-4-8 |
|
|
Limits for Harmonic Current Emissions Class A 'E Conforming to IEC 61000-3-2 |
|
|
Conducted RF disturbances Level 3 'E Conforming to IEC 61000-4-6 |
|
|
Conducted and radiated emissions Class B 'E Conforming to EN 55022 |
|
|
IP Protection Degree |
Block: Ip30 'E Conforming to IEC 60529 |
|
Front: Ip52 'E Conforming to IEC 60529 |
|
|
Pollution Degree |
2 |
|
Compatibility Code |
Pm5340 |
|
General Features |
|
|
[Us] Rated Supply Voltage |
100...415 V Ac 45...65 Hz |
|
125...250 V Dc |
|
|
Analog Enterance Voltage |
Current (Impedance 0.3 Mohm) |
|
Voltage (Impedance 5 Mohm) |
|
|
Connections - Terminals |
Current Transformer: Screwed Terminal Block 6 |
|
Ethernet Network: Rj45 Connector |
|
|
Voltage Circuit: Screwed Terminal Block 4 |
|
|
Input-Output Circuit: Screwed Terminal Block 6 |
|
|
Control Circuit: Screwed Terminal Block 2 |
|
|
Relay Output: Screwed Terminal Block 4 |
|
|
Memory Capacity |
256 Kb |
|
Device Application |
Multi-Tariff |
|
Power Monitoring |
|
|
Number of Output |
2 Digital |
|
2 Relay |
|
|
Depth |
72 Mm |
|
Accuracy Class |
Class 0.5S Active Energy 'E Conforming to IEC 62053-22 |
|
Screen Resolution |
128 X 128 Pixel |
|
Screen Type |
Backlighted LCD |
|
Frequency Measuring Range |
45-65 Hz |
|
Width |
96 Mm |
|
Number of Input |
2 Digital |
|
Displayed Information |
Tariff (4) |
|
Power Quality Analyse |
Until 31. Harmonic |
|
Support of Port Communication |
Ethernet |
|
Protocol of Port Communication |
Bacnet Ip |
|
Modbus Tcp/Ip -De 10, 100 Mbit/Sn, Isolation 2500 V |
|
|
Pole Description |
1P + N |
|
3P |
|
|
3P + N |
|
|
Montage Support |
Block |
|
Montage Type |
Flush Mounted Montage |
|
Rated Current (Ir) |
0,0416666666666667 |
|
0,208333333333333 |
|
|
Measuring Current |
10-9000 Ma |
|
Measuring Accuracy |
Current +/- %0,5 |
|
Active Power +/- %0,5 |
|
|
Effective Power +/- %0,5 |
|
|
Frequency +/- %0,05 |
|
|
Voltage +/- %0,5 |
|
|
Visible Power +/- %0,5 |
|
|
Power Factor +/- 0.005 |
|
|
Reactive Energy +/- %2 |
|
|
Measuring Voltage |
20-400 V Ac 45...65 Hz Between the Phase and Neutral |
|
35-690 V Ac 45...65 Hz Between Phases |
|
|
Measuring Type |
Current |
|
Active and Reactive Power |
|
|
Energy |
|
|
Frequency |
|
|
Voltage |
|
|
Power Factor |
|
|
Sampling Speed |
64 Sample per Loop |
|
Standards |
En 50470-1 |
|
En 50470-3 |
|
|
IEC 60529 |
|
|
IEC 61557-12 |
|
|
IEC 62053-22 |
|
|
IEC 62053-24 |
|
|
Ul 61010-1 |
|
|
Network Frequency |
50 Hz |
|
60 Hz |
|
|
Product Weight |
430 G |
|
Product Certificates |
Ce 'E Conforming to IEC 61010-1 |
|
Culus 'E Conforming to uı 61010-1 |
|
|
Power Consumption in Va |
10 Va -De 415 V |
|
Data Recording |
Alarm Records |
|
Minimum - Maximum of Instantaneous Value |
|
|
Care Records |
|
|
Case Records |
|
|
Time Stamp |
|
|
Data Records |
|
|
Local Signalling |
100 Ms 230 V Ac Typical |
|
100 Ms 415 V Ac Typical |
|
|
80 Ms 120 V Ac Typical |
|
|
Height |
96 Mm |
