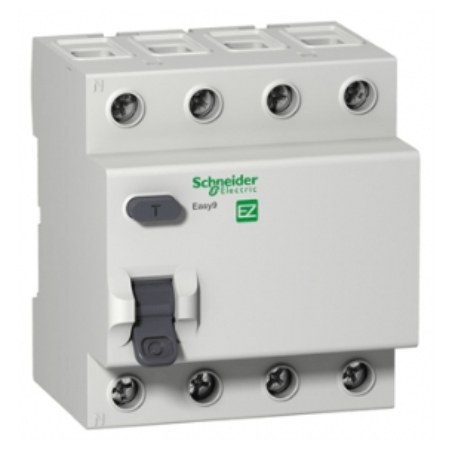

Schneider-4x25A 300 mA Leakage Current Relay 0.5kA

Basic

[In] Rated Current

25 A

Rated Breaking and Swıtching off Capacity

500 A

Pole Description

4P

Rated Conditional Short Circuit Current

Easy9 Mcb: 3000 A 63 A

Neutral Location

Left

Network Type

Ac

Earth Leakage Sensitivity

300 Ma

Earth Leakage Protection Class

Type Ac

Earth Leakage Protection Time Delay

Instantaneous

Product Group

Easy9 Rccb

Product Series

Easy9

Product or Component Type

Residual Current Circuit Breaker (Rccb)

Classification

Relative Humidity

95-95 % -De 55-55 °C

Environment Condition for Storage

-40-85 °C

Ip Protection Degree

Ip20

Pollution Degree

2 'E Confirmation to IEC 61008-1

Rated Operation Environment Temperature

-5-60 °C

Standards

Iec 61008-1

Tropicalisation

2

Product Certifications

Ce

Isı

General Features

[Ue] Rated Operation Voltage

400 V Ac 50 Hz

[Ui] Rated Insulation Voltage

440 V Ac

[Uimp] Rated Impulse Withstand Voltage

4 Kv

9 Mm Pitches

8

Connections - Terminals

Tunnel Type Terminal (Top or Bottom) 1-25 Mm² Flexible

Tunnel Type Terminal (Top or Bottom) 1-35 Mm² Solid

Comb Busbar Distribution Block Compatibility

Top: Yes

Depth

72 Mm

Electrical Durability

Ac: 2000 Cycles 400 V Ac 50 Hz

Width

72 Mm

Breaking Current

250 A

Contact Location Signal

Yes

Control Type

Transition

Mechanical Durability

5000 Cycles

Montage Support

DIN Rail

Montage Type

Attachable

Marketing Segment

House

Color

Gray (Ral 7035)

Residual Current Trip Technology

Voltage Independent

Tightening torque

3.5-3.5 N.M Top or Bottom

Device Location on System

Exit

Network Frequency

50 Hz

Product Weight

375 G

Height

82 Mm
