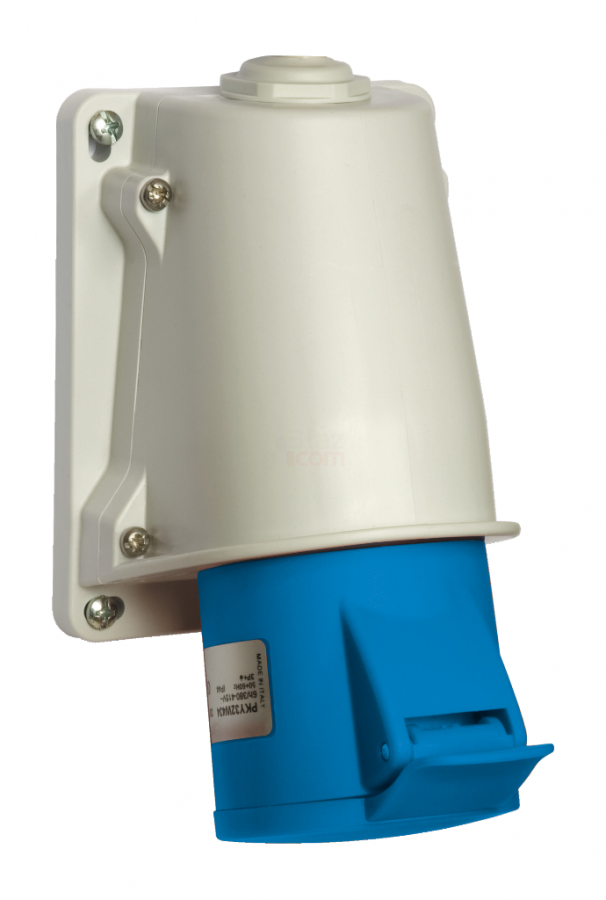

Schneider 3x32A Monoiphasic 2p-T Fast Wall Plug IP44

Name: Schneider 3x32A Monoiphasic 2p-T Fast Wall Plug IP44
Brand: Schneider Electric
SKU: PKY32W423
Price: 617.47 TRY
Availability: InStock

Product Code : PKY32W423

Model : Kaedra Box

617.47 TL VAT

514.56 TL + VAT

Money Order Price : 499.12 TL + VAT %3 Discount

Adet

+

Schneider Electric

Industrial Plug Socket

Price Alert

Basic
Output Standard	Industrial
Plug-Socket Category	Low Voltage
Pole Description	2P + E
Series	Pratika
Network Type	Ac
Product Name	Pratika Socket
Product Group	Pratika Socket
Product Series	Socket
Characteristic
Relative Humidity	50-50 % -De 40-40 °C
	70-70 % -De 30-30 °C
	90-90 % -De 20-20 °C

Ambient Air Condition for Operating	35-35 °C 86400 S )
Ik Protection Degree	Ik08 'E Conforming to EN 62262
Ip Protection Degree	Ip44 'E Conforming to IEC 60529
Standards	Iec 60309-1
Standards	Iec 60309-2
Fire Resistivity	850 °C 'E Conforming to IEC 60695-2-1
General Features
Connections - Terminals	Fast Connection
Depth	141 Mm
Plug, Socket Material	Conservation: Self-extinguishing Engineering Polymer
Plug, Socket Form of Control Station	Angled
Width	106 Mm
Color of Voltage	Blue
Cable Cut View	2.5-10 Mm²
Contact Materials	Sleeves: Brass
Montage Type	Montage on Wall
Rated Current (Ir)	32 A
Rated Operational Voltage	200…250 V
Marketing Segment	Small-Size Enterprise
Color	Gray (Ral 7035)
Network Frequency	50/60 Hz
Ground lug clockwise position	6 H
Compatibility Code	Pratika Socket
Product Weight	0.28 kg
Height	160 Mm
