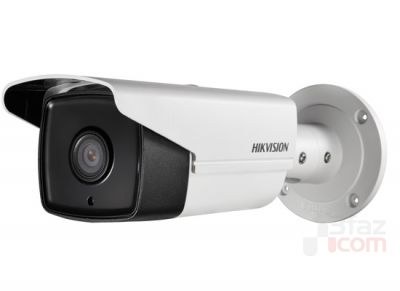

2.0MP 3.6mm Lens 80Mt. IR HD-TVİ Bullet Camera

Camera

Image Sensor: || 2MP CMOS Image Sensor

Active Pixel 1920 (H) * 1080 (V)

Signal System| //PAL/NTSC

Number of Active Pixels: || 1920(H)*1080(V)

Min. Illumination: |/ 0.01 Lux@ (F1.2, AGC ON), 0 Lux with IR

Shutter Speed: | | 1/25 (1/30)s to 1/50,000s

Lens: || 3.6mm (2.8mm, 6mm,8mm,12mm, 16mm optional)

Viewing Angle: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm), 37.7°(8mm), 24.2°(3.6mm)), 18.8°(6mm)

Lens Mount: | / M12

Adjustment Range| // Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°

Video Frame Rate: || 1080p@25fps /1080p@30fps

Video Output| // 1 Analog HD output

Synchronization| / / Internal Synchronization

S/N Ratio| // More than 62 dB

General

Operating Conditions| | / -40°C - 60°C (-40°F - 140°F)

Humidity 90% or less (non-condensing)

Power Supply: |/ 12 VDC±15%

Power Consumption| / / Max. 4W

Weather Proof| // IP66

IR Range: | / Up to 40 m

Dimension: ||86.22×82.05×220.13mm (3.39 '× 3.23' × 8.67 ')

Weight: | | 430 g (0.95 lbs)

Additional

Camera type Bullet

The camera lens type is Fixed

Infrared sensor type EXIR

There is no large dynamic area no
