Basic |
|
|
Output Standard |
Industrial |
|
Plug-Socket Category |
Low Voltage |
|
Pole Description |
2P + E |
|
Series |
Pratika |
|
Network Type |
Ac |
|
Product Name |

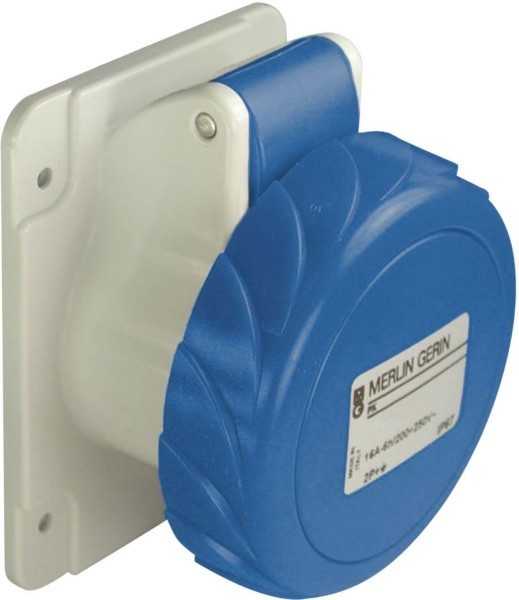

Pratika Socket |
|
Product Group |
Pratika Socket |
|
Product Series |
Socket |
|
Characteristic |
|
|
Relative Humidity |
50-50 % -De 40-40 °C |
|
70-70 % -De 30-30 °C |
|
|
90-90 % -De 20-20 °C |
|
|
Ambient Air Condition for Operating |
35-35 °C 86400 S ) |
|
Ik Protection Degree |
Ik08 'E Conforming to EN 62262 |
|
Ip Protection Degree |
Ip67 'E Conforming to IEC 60529 |
|
Standards |
Iec 60309-1 |
|
Iec 60309-2 |
|
|
Fire Resistivity |
850 °C 'E Conforming to IEC 60695-2-1 |
|
General Features |
|
|
Connections - Terminals |
Holder Screws |
|
Depth |
127 Mm |
|
Plug, Socket Material |
Conservation: Self-extinguishing Engineering Polymer |
|
Plug, Socket Form of Control Station |
Angled |
|
Width |
95 Mm |
|
Color of Voltage |
Blue |
|
Cable Cut View |
2.5-10 Mm² |
|
Contact Materials |
Sleeves: Brass |
|
Montage Type |
Panel Montaged |
|
Rated Current (Ir) |
32 A |
|
Rated Operational Voltage |
200…250 V |
|
Marketing Segment |
Small-Size Enterprise |
|
House |
|
|
Color |
Gray (Ral 7035) |
|
Network Frequency |
50/60 Hz |
|
Ground lug clockwise position |
6 H |
|
Compatibility Code |
Pratika Socket |
|
Base Dimensions |
90 x 100 MM |
|
Product Weight |
0.245s kg |
|
Height |
100 Mm |
