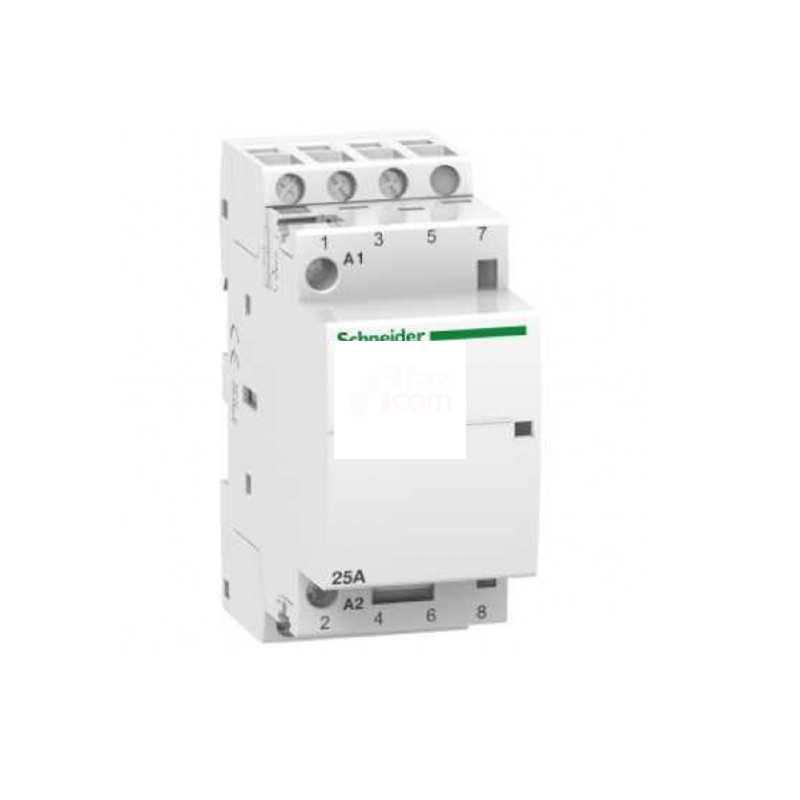

Schneider Modular Contactor Triphase 25A

Basic

[Ie] Rated Opreation Current

25 A Ac-7A

8.5 A Ac-7B

Device Application

Motor-Heating-Lighting

Control Circuit Voltage

220...240 V Ac 50 Hz

Control Type

Remote Control

Pole Contact Fixing

3 Na

Pole Description

3P

Series

Acti 9

Network Type

Ac

Product Name

Acti 9 İct

Product Group

İct

Product Series

İct

Product or Component Type

Contactor

Characteristic

Relative Humidity

95-95 % -De 55-55 °C

Operational Altitude

2000 M

Environment Condition for Storage

-40-70 °C

Noise Level

30 Db

Ip Protection Degree

Ip20 'E Confirmation to IEC 60529

Ip40 (Modular Enclosure) 'E Confirmation to IEC 60529

Heat Distrubition

1.6-1.6 W -De 50/60 Hz

Pollution Degree

2

Rated Operation Environment Temperature

-5-60 °C

Standards

Iec/En 61095

Tropicalisation

2 'E Confirmation to EN 60947-4-1

2 'E Confirmation to EN 61095

2 'E Confirmation to IEC 1095

Features

[Ue] Rated Opreation Voltage

400 V Ac 50 Hz

[Ui] Rated Insulation Voltage

500 V Ac 50/60 Hz

[Uimp] Rated İmpulse Withstand Voltage

4 Kv

9 Mm Pitches

4

Switching Frequency

100 Switching Action / Day

Connections-Terminals

Power Circuit: Tunnel Type Terminals1 Cable(S) 1.5-6 Mm² Flexible

Power Circuit: Tunnel Type Terminals1 Cable(S) 1-4 Mm² Flexible

Control Circuit: Tunnel Type Terminals1 Cable(S) 1.5-2.5 Mm² Solid

Control Circuit: Tunnel Type Terminals2 Cable(S) 1.5-1.5 Mm² Solid

Control Circuit: Tunnel Type Terminals2 Cable(S) 1.5-2.5 Mm² Flexible

Local Signalling

Action Indicator

Depth

60 Mm

Electrical Durability

100000 Cycles En/Iec 60947-4-1 50 Hz Ac-1

100000 Cycles Iec/En 61095 25 A 50 Hz Ac-7A

30000 Cycles En/Iec 60947-4-1 50 Hz Ac-3

30000 Cycles En/Iec 60947-4-1 50 Hz Ac-5A

30000 Cycles En/Iec 60947-4-1 50 Hz Ac-5B

30000 Cycles Iec/En 61095 50 Hz Ac-7C

30000 Cycles Iec/En 61095 8.5 A 50 Hz Ac-7B

Width

36 Mm

Control Signal Type

Maintained

Maximum Power

1.6 W -De 400 V Ac

Mecanichal Durability

1000000 Cycles

Montage Support

35 Mm Symmetric Dın Rail

Montage Type

Pluggable

Marketing Segment

House

Small-Size Enterpise

Color

White

Tightening Torque

Power Circuit: 0.8-0.8 N.M

Control Circuit: 0.8-0.8 N.M

Network Frequency

50 Hz

Compatibility Code

İct

Product Compatibility

İactc

İactp

İacts

İatet

Inrush Power in Va

34 Va

Hold-in power consumption in Va

4.6-4.6 Va

Height

81 Mm
