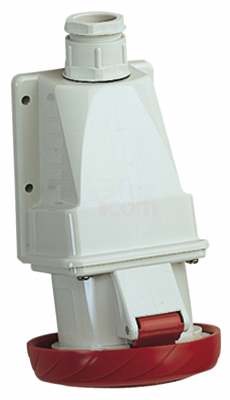

Schneider 4x16a Triphasic 3p-N-T Ip67 Screwed Connection Wall Socket

Name: Schneider 4x16a Triphasic 3p-N-T Ip67 Screwed Connection Wall Socket
Brand: Schneider Electric
SKU: PKF16W734
Price: 598.29 TRY
Availability: InStock

Product Code : PKF16W734

Model : Kaedra Box

598.29 TL VAT

498.58 TL + VAT

Money Order Price : 483.62 TL + VAT %3 Discount

Adet

+

Schneider Electric

Industrial Plug Socket

Price Alert

Basic
Output Standard	Industrial
Plug-Socket Category	Low Voltage
Pole Description	3P + E
Series	Pratika
Network Type	Ac
Product Name	Pratika Socket
Product Group	Pratika Socket
Product Series	Socket
Characteristic
Relative Humidity	50-50 % -De 40-40 °C
	70-70 % -De 30-30 °C
	90-90 % -De 20-20 °C

Ambient Air Condition for Operating	35-35 °C 86400 S )
Ik Protection Degree	Ik08 'E Conforming to EN 62262
Ip Protection Degree	Ip67 'E Conforming to IEC 60529
Standards	Iec 60309-1
Standards	Iec 60309-2
Fire Resistivity	750 °C 'E Conforming to IEC 60695-2-1
General Features
Connections - Terminals	Holder Screws
Depth	143 Mm
Thread Type	M25
Plug, Socket Material	Conservation: Self-extinguishing Engineering Polymer
Plug, Socket Form of Control Station	Angled
Width	106 Mm
Color of Voltage	Red
Montage Type	Montage on Wall
Cable Cut View	1-4 Mm²
Cable Outer Diameter	21 mm
Contact Materials	Sleeves: Brass
Montage Type	Montage on Wall
Rated Current (Ir)	16 A
Rated Operational Voltage	380…415 V
Marketing Segment	Small-Size Enterprise
Marketing Segment	House
Color	Gray (Ral 7035)
Base Dimensions	90x100 mm
Network Frequency	50/60 Hz
Ground lug clockwise position	6 H
Compatibility Code	Pratika Socket
Product Weight	0.32kg
Height	178 Mm
