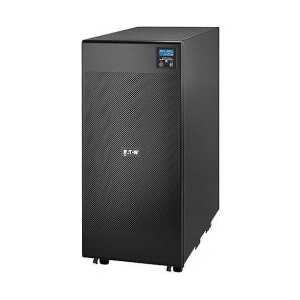

9E 15kVA 1:1 and 3:1

(Please ask for stock)

Technical Specifications

General

Classification (VA/W): 15000/12000

Configuration: Tower

Piece Number: 9E15Ki

Electrical Properties: Technology

Electric Input

Connection: Hardwired – checking the user manual for Terminal Block array

Minimum Voltage: /220/230/240V

Input voltage range: 176-276V without decreasing voltage (up to 110-276V with decreasing voltage)

Input frequency: 50/60 Hz automatic selection

Frequency Range: 45-66 Hz

Short-circuit Current: 205A

Electric Output

Voltages: 220/230/240V ±2 %

Voltage THD: <3%

Connection: Hardwired – checking the user manual for Terminal Block array

Overload capacity: 105%-130%: 60s, 130%-150%: 10s, >150%: ≥300ms

Efficiency: Up to 91% in online mode, %97 in ECO mode

Output Frequency; 50/60 Hz automatic selection, frequency convertor standard

Communications

Communication Ports

1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used at the same time)

Card Slot: 1 slot for Network M2, ModBus-MS or Relay-MS cards

Software: Eaton IPM Software

Working Conditions and Standards

Operating Temperature: 0 to 40°C

Hearable noise level: <55 dB

Safety Symbol: IEC/EN 62040-1

EMC Symbols: IEC/EN 62040-2

Approvals: CE, CB report (TUV)/EAC

Weight(kg): 24.2

Dimensions D x H x W (mm) 815.5 x 350 x 706

Weight (kg) 145.3

Warranty: 2 years
