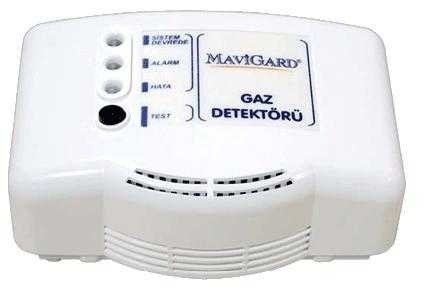

Methane (Natural Gas) Detector, 12/24V DC, With Relay Output

Methane (Natural Gas) Detector, 12/24V DC, With Relay Output

Natural gas (methane) is a hydrocarbon derivative, explosive gas class and lighter than air. Therefore, during leakage, the gas will rise towards the ceiling. Taking this situation into account, the detectors should be installed 5-15cm down from the ceiling and 1-2m horizontally away from the gas source. Methane detectors sound and visually alarm before the gas leak reaches the 20% LEL (lower explosion limit) level.

Complies with EN 50194 and EN 50291 standards

Compatible with Maxlogic and Khwarezmic Smart Analog Addressable fire Alarm Switchboards

With three LEDs, the normal operation of the system, errors in the detector and gas alarm information can be monitored.

Operation control of LEDs and buzzer with the test button

Built-in buzzer

5 Years sensor life under normal operating conditions

Stable precision and superior working performance

It is powered by 24V DC external power supply.

127 Gas detectors can be connected to a cycle.

It can be included in cause and effect scenarios.

It is defined as an input device in cause and effect scenarios.

Relay output feature

Microprocessor controlled

Aesthetic design

Production with surface mount technology
