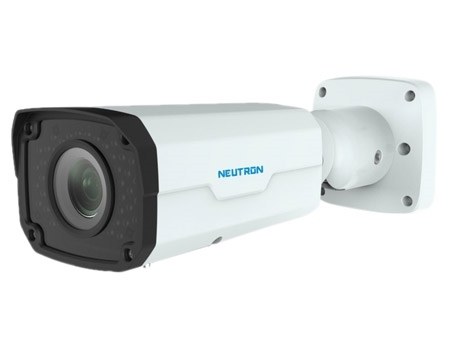

4 0MP 2 8~12mm Varifocal Lens IP IR Bullet Kamera

Model

IPC2324EBR-DP

Kamera

Sensor

1/3', 4.0 megapixel, progressive scan, CMOS

Shutter

Otomatik/Manuel, 1/30 ~1/100.000 s

Lens

2.8~12mm @F1.4; Angle of view: 95°~29°

Min. Illumination

Colour: 0.02 Lux (F1.4, AGC ON) 0 Lux with IR on

Day/Night

IR-cut filter with auto switch (ICR)

IR Range

Up to 30m (98 ft) IR range

S/N

55dB den fazla

WDR

Optical WDR (up to 120 dB)

Video

Max. Resolution

2592×1520

Video Compression

U-Code/H.265, H.264, MJPEG

Frame Rate

4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps

9:16 Corridor Mode

Destekler

ROI

Destekler

Video Streaming

Triple

OSD

Destekler

Privacy Mask

4 Bölge

Smart

Behavior Detection

Intrusion, crossing line, motion detection

Exception Detection

Audio detection

Intelligent Identification

Face detection

Statistical Analysis

People counting

Audio

Audio Compression

G.711

Two-way audio

Supported

Storage

Edge Storage

Micro SD, up to 128 GB

Network

Protocols

L2TP, IPv4,IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x

Compatible Integration

ONVIF, API

Interface

Audio I/O

Audio cable

Input: impedance 35 kΩ; amplitude 2 V [p-p]

Output: impedance 600 Ω; amplitude 2 V [p-p]

Alarm I/O

1 / 1

Network

10M/100M Base-TX Ethernet

General

Power

12 V DC, or PoE (IEEE802.3 af)

Power consumption: Max 8 W

Material

Cast aluminum

Dimensions (L × W × H)

253.4 ×86 ×71.7 mm (9.98' × 3.4' × 2.8')

Weight

0.58 Kg

Working Environment

-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)

Vandal Resistant

IK10

Ingress Protection
