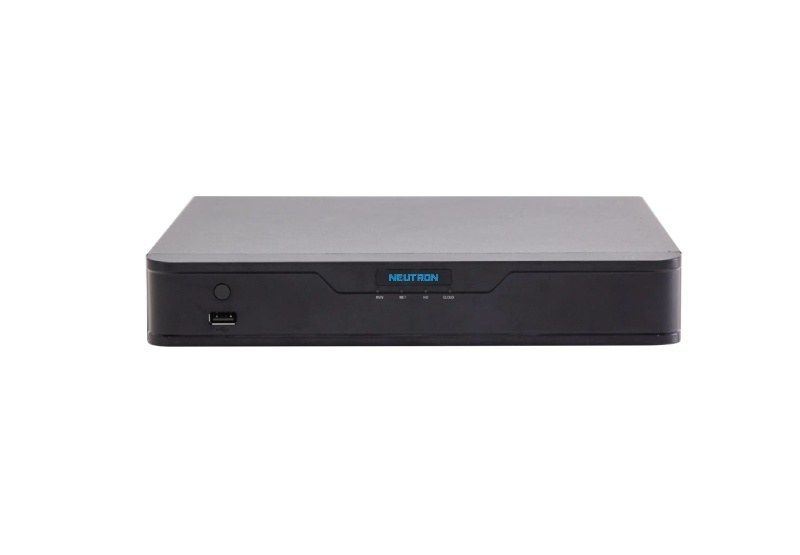

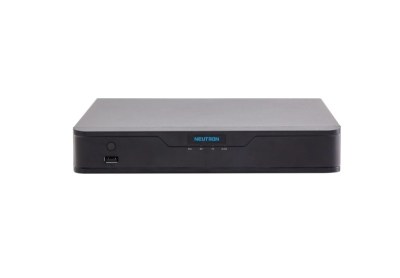

16 Kanal 1xSata FullHD 4K NVR Kayıt Cihazı

Model

NVR301-16E

Video and Audio

IP Video Input

16-ch

Two-way audio Input

1-ch, RCA

Network

Incoming bandwidth

80Mbps

Outgoing bandwidth

80Mbps

Remote connection

128

Video/Audio Output

HDMI/VGA Output

HDMI:

4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz

VGA:

1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz

Audio Output

1-ch, RCA

Recording Resolution

8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Synchronous Playback

16-ch

Decoding

Compression

H.265/H.264

Live view/ Playback

8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

1 x 4K@30, 3 x 4MP@20, 4 x 1080p@25, 8 x 720p@25, 16 x D1

Hard Disk

SATA

1 SATA interface

Capacity

up to 6TB for each disk

External Interface

Network Interface

1 RJ-45 10M/100M self-adaptive Ethernet Interface

Network Function

HTTP, TCP/IP, IPV4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,IP Filter, PPPOE, DDNS, FTP, IP Server, P2P

USB Interface

Rear panel：2 x USB2.0,Front panel：1XUSB2.0

Alarm In

4-ch

Alarm Out

1-ch

General

Power Supply

12V DC

Consumption ( without HDD )

≤ 8 W

Working Temperature

-10°C ~ + 55°C ( +14°F ~ +131°F )

Working Humidity

10% ~ 90%

Dimensions

44 × 260 × 240mm ( 1.7' × 10.2' × 9.4' )

Weight ( without HDD )

≤ 1.12 Kg ( 2.47 lb )
